Range Extender

THE Z-WAVE PLUS RANGE EXTENDER

Give your Z-Wave System a Boost

$24.97

Use the Dome Range Extender to expand your Z-Wave Coverage and improve communication between your devices. The perfectly small exterior is equipped with an LED light which serves as an indicator or a night light. This little gem is ready to use, right out of the box to extend your Z-Wave range by more than 400 ft in all six directions and comes with a small suction cup for flexible mounting options – a must for a modern smart home.





Extender Usage Ideas





Plug and Extend

Simply plug it into a power socket where you need to boost your Z-Wave signal and connect. The Dome Range Extender will provide a more stable communication between the other Z-Wave devices nearby. More than 400 ft in all 6 directions (line of sight) to be exact! Great for basements, garages or suction cup to a window to extend range to your backyard.


Let There Be Light!

The small, space-efficient design does not block second outlets or obstruct furniture and with the customizable LED lighting, you can use the Dome Range Extender as a nightlight. Great for dark hallways, basements, breezeways or bathrooms. Not only do you extend your Z-Wave range, but you also have a sleek looking night light too!

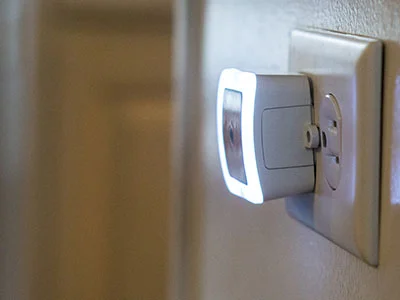

Visual Notification

Customize the Range Extender by configuring it to your Hub as a visual notification tool. Set in on/off light mode and if the LED light is on – someone did not close the garage door again.



Features

icon

One Step Installation

Install in seconds and with not tools.

icon

Extends Range

Over 400ft of Z-Wave range extension in all 6 directions from the device.

icon

Night Light

Night light On/OFF Status.

icon

Low Profile

Designed to not block adjacent outlet and to blend into environment.

icon

Attach to Window

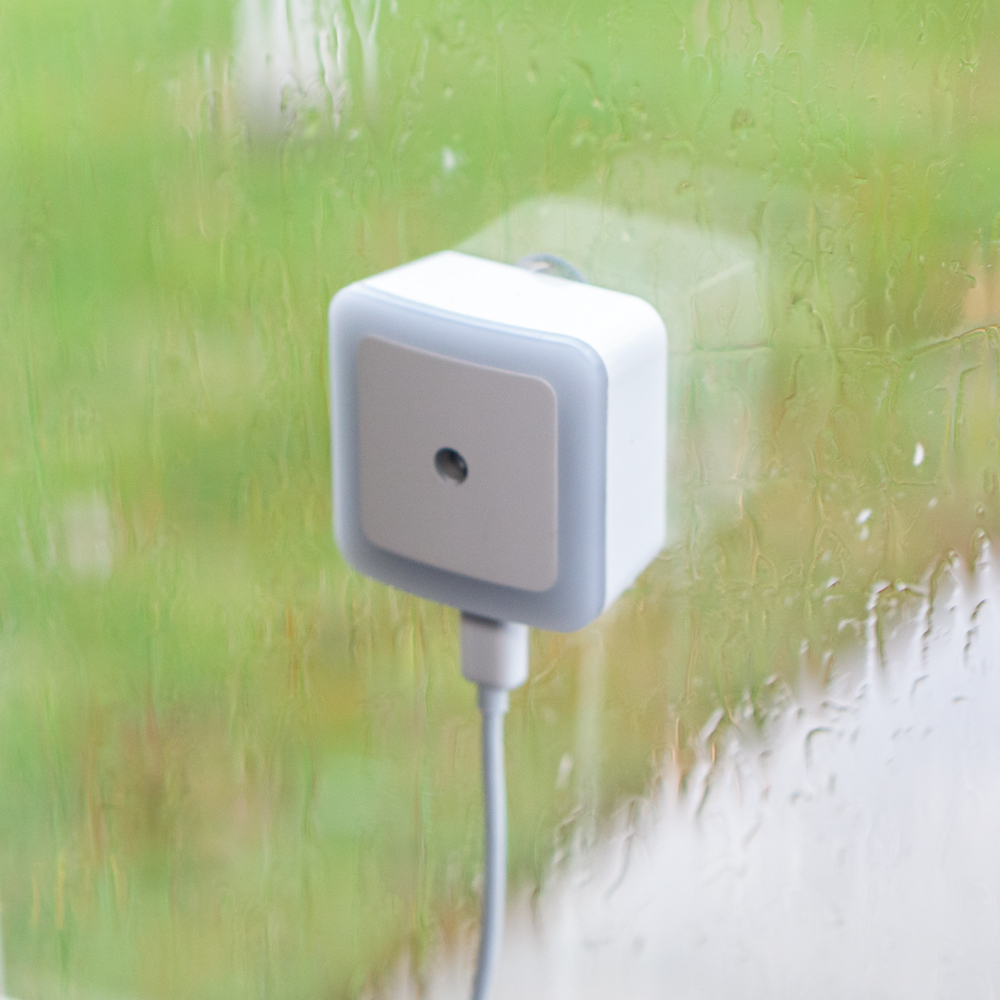

Suction cup mount included for window installation to reach outside devices.

icon

Direct Power

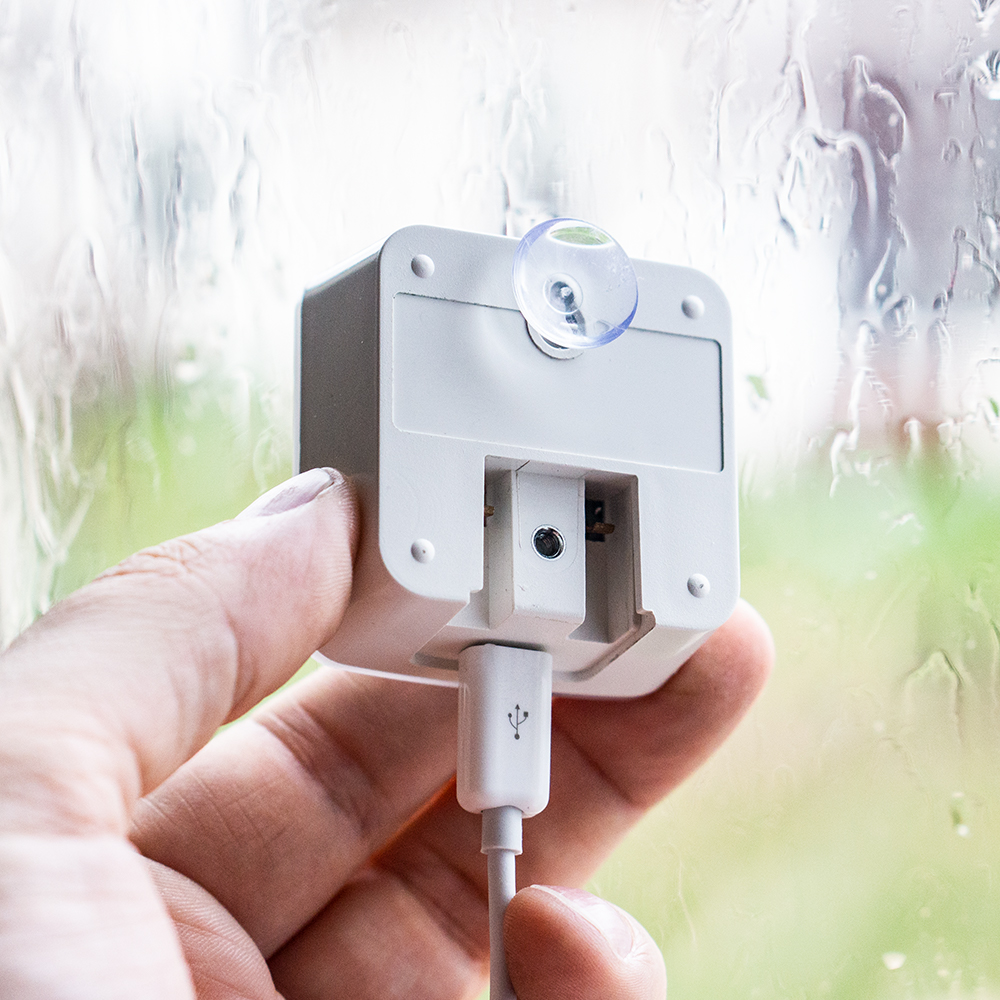

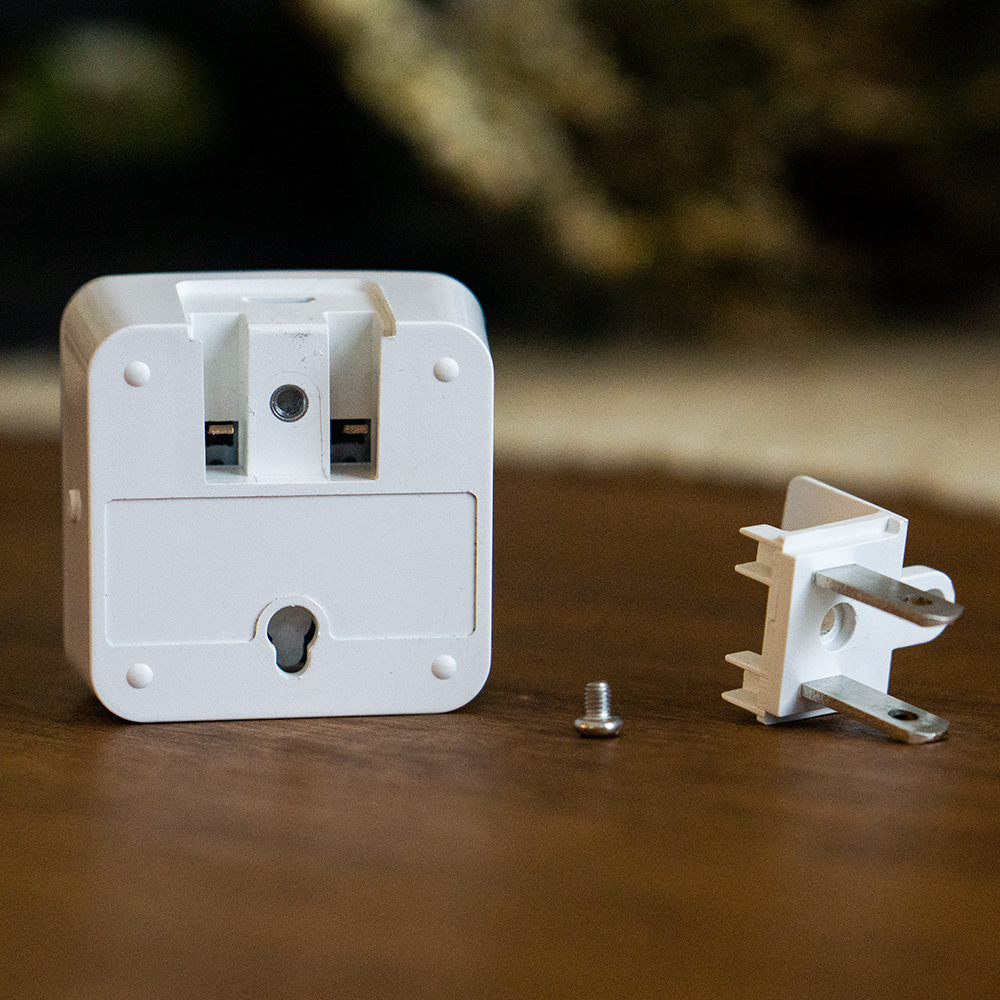

Plug into wall outlet or power with micro USB (micro USB not included).





Spec/Info

Technical Data

Power supply100-120V ~ 60Hz, 30mA, or 5V DC

RangeMore than 400' in all 6 directions from the Range Extender device (line of sight)

Reported DataLight on/off status

Available ModesNight light, on/off light

Button FunctionalityInclusion, Exclusion, Factory default, Light on/off, mode change

Operating Conditions32°F to 104°F (0°C to 40°C)

WarrantyOne Year Parts & Labor

Sensor Dimensions3.15 x 1.81 x 1.1 in (8.0 x 4.6 x 2.8 cm)


Z-Wave Info

Raido ProtocolZ-Wave(500 series)

Radio Frequency908.4 MHz US

RangeUp to 150’ from the hub depending on the environment


Resources

Spec Sheet(PDF)

User Manual (PDF)

Package Contents

User Manual

Range Extender

Suction Cup





Not finding your answers in the Docs or FAQ's? Shoot us a support ticket and we'll reply right away.

As former installers we know how important clean, easy to read documentation is. We created Dome from the ground up with the idea that sensors should work with any hub, and they should be easy to modify and troubleshoot.
