The Leak Sensor

Stay a step ahead of disaster


Use the Leak Sensor with your Z-Wave Hub to potentially save thousands of dollars in water damage. Get an alert or turn off your water main when an appliance malfunctions, the toilet leaks, or the sump pump starts to overflow. It also has multiple mounting options and a remote sensor probe, so the Leak Sensor can monitor any water-related appliance or fixture.



Leak Sensor Usage Ideas


Monitor Your (Water) Streaming Services

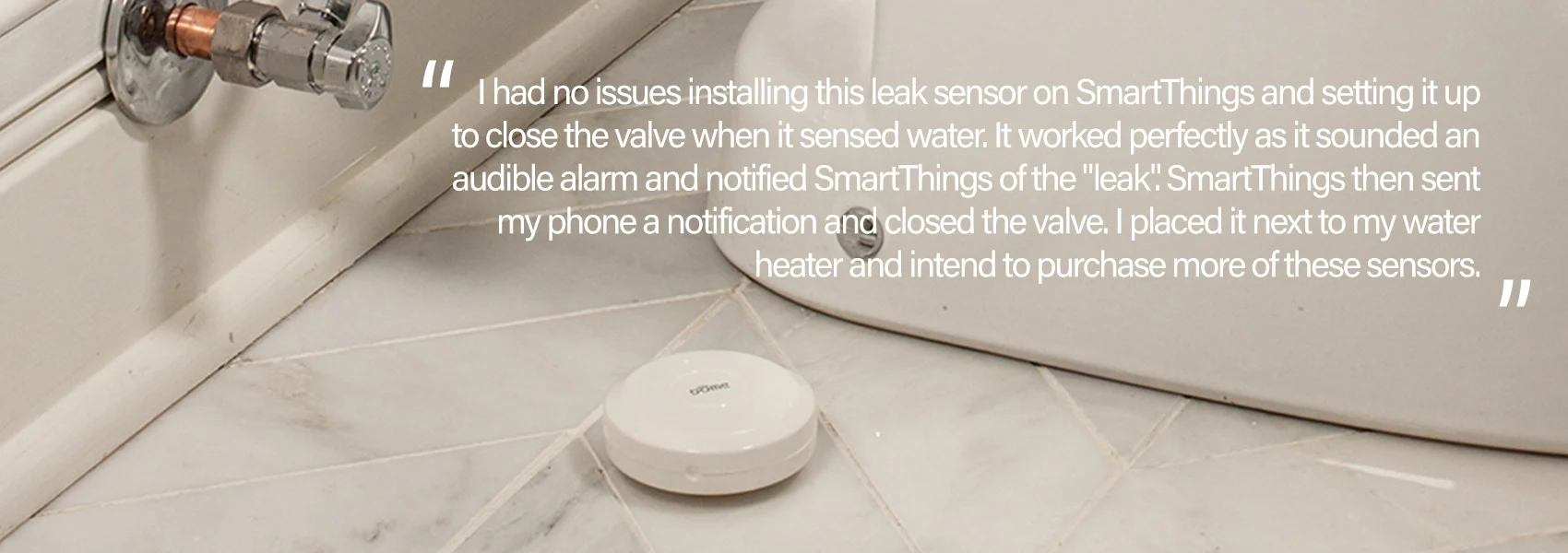

Receive an alert or shut off your water main if your toilet leaks. Place the Leak Sensor near your toilet or other fixtures and configure your Hub to take action when water is detected.


Your Sump Pump’s New Aquaitance

Know when the sump pump fills up, BEFORE it overflows. Dangle the remote sensor probe in the tank to receive a notification and hear an alarm if the water level rises higher than it should.


Fits in with Any Crowd

Stop worrying about appliances leaking. The remote sensor probe can fit under refrigerators, washing machines, and dishwashers to let you know when something fishy happens.




Battery Powered

Use anywhere in your home without running any wires or looking for power.


Built-In Buzzer

To alert those nearby when water is detected.


Flexible Installation

Use it anywhere - mount on a wall next to a fixture, place it next to a water heater, etc.


Low Profile

To fit underneath appliances and stay out of your way.


Remote Sensor Probe

For use in tight spaces, sump pumps, or under appliances.


Water Resistant

So you don't have to throw it away after one use.



Technical Data

Power supply2x CR123 3.0V battery

Working current35mA

Power Consumption0.13W

Operating temperature32 - 104 °F (0 - 40 °C)

WarrantyOne Year Parts & Labor

Sensor DimensionsØ2.63” x 1”

Z-Wave Info

Raido ProtocolZ-Wave(500 series)

Radio Frequency908.4 MHz US

CapabilitiesNotifications(Water Alarm)
Binary Sensor (Water)
Audible Alarm

RangeUp to 150’ depending on


User Manual (PDF)

Advanced Manual (Web)

Installation (Web)

Basic Z-Wave Usage (Web)

Command Classes (Web)

Configuration Parameters (Web)

Package Contents

User Manual


Sensor Cradle

Remote Sensor Probe


1x Screw

1x Wall Anchor


Not finding your answers in the Docs or FAQ's? Shoot us a support ticket and we'll reply right away.

As former installers we know how important clean, easy to read documentation is. We created Dome from the ground up with the idea that sensors should work with any hub, and they should be easy to modify and troubleshoot.


Expand Your Dome System


Range Extender


Water Main Shut-off


On/Off Plug-In Switch




Motion Detector


Door/Window Sensor




Leak Sensor Available At:
